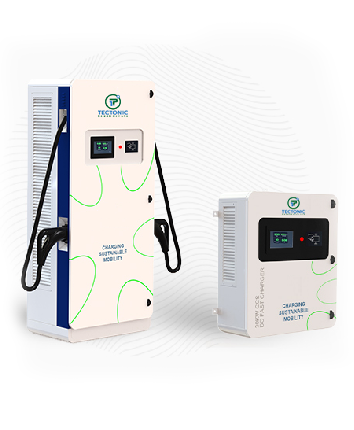

DC Fast Charger
A compact, reliable, and robust DC fast charger capable of charging all EVs on the market. This all-in-one unit is small enough to suit your site’s configuration and maximize your parking space without need for expensive site modifications.
Features
- CCS complies with IEC 62196-3, CHAdeMO complies with JEVS G104 and BHARAT DC001with GB/T 20234.2.
- Higher power conversion efficiency upto >=94%
- Output power capacity up-to 30 kW for CCS, CHAdeMO & DC001 (Each 15 kW)
- Available models in 3-Ph power input.
- High brightness HMI touchscreen interface of 4.3” TFT color touch screen.
- Front panel visual indication for Mains available, System error, Charging status
- Suitable for extreme Indian environmental conditions.
- Payment options integration with RFID, payment wallets, and credit card
- Modular design resulting in streamlined support and service
- All-weather enclosure and HMI for use inside or outside (IP54)
- Built-in communication modules for (3G/Wifi/LAN)
- Compliance with OCPP 1.6J protocol
Capacity Available With
- Single Gun CCS2 with 30 kW capacity
- Single Gun CHAdeMO with 30 kW capacity
- Double Gun CCS2 with 30kW capacity with simultaneous charging option
- Double Gun CHAdeMO with 30kW capacity with simultaneous charging option
- Single Gun CCS2 and Single Gun CHAdeMO with 30kW capacity with simultaneous charging option
Application
Highway
Parking
Residential
Hotels
Service Station
Fleets
